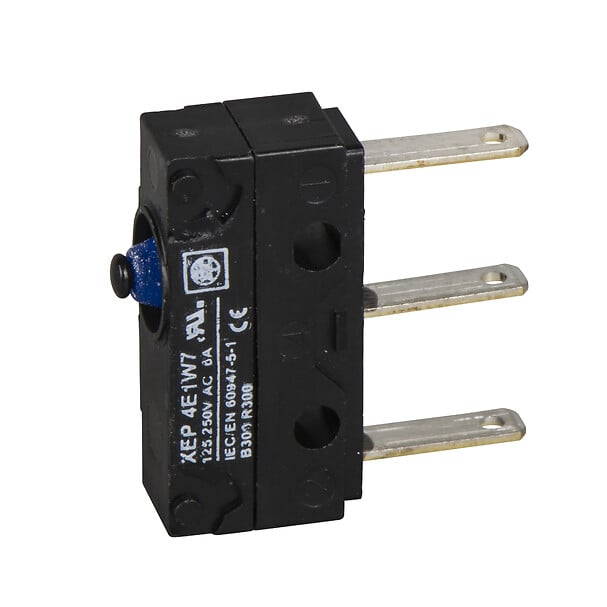

Telemecanique Sensors XEP4E1W7
Miniature snap switch XEP4, flat plunger
Категории:
Технические характеристики
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Microswitch |
| Device short name | XEP4 |
| Detector design | Subminiature, DIN 41635 B format, sealed |
| Head type | Plunger head |
| Movement of operating head | Linear |
| Switch actuation | On end |
| Type of operator | Plunger |
| Type of approach | Vertical approach |
| Electrical connection | 2.8 mm cable clip tags |
| Contacts type and composition | 1 C/O standard |
| Contact operation | Snap action |
| Материал | AgCdO |
| Материал | Tinned brass |
| Материал | Polyester |
| Contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (1-2-4)OC |
| IP degree of protection | IP67 |
| Marking | CE |
| Standards | CURusIEC 60947-5-1IEC 61058UL 1054 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 0.7 CENTIMETER |
| Package 1 width | 2 CENTIMETER |
| Package 1 length | 2 CENTIMETER |
| Масса | 0.002 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 100 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 0.472 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 5 |
| Package 3 height | 5 CENTIMETER |
| Package 3 width | 1 CENTIMETER |
| Package 3 length | 6 CENTIMETER |
| Масса | 0.013 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
