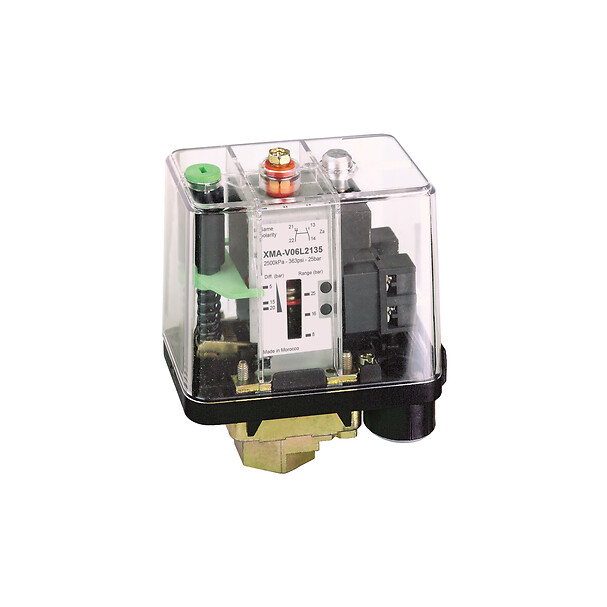

Telemecanique Sensors XMAV06L2135
Pressure switch, XMA, pressure range 6 bar, adjustable scale, 1CO, 2 thresholds
Категории:
Технические характеристики
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure sensor type | Electromechanical pressure sensor |
| Pressure sensor name | XMA |
| Contacts type and composition | 1 C/O snap action |
| Controlled fluid | Air (0-70 °C), fresh water (0-70 °C), sea water (0-70 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Cable entry | 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm² |
| Electrical circuit type | Control circuit |
| Setting | External |
| Colour of cover | Transparent |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Fixed differential |
| Local display | Without |
| Материал | PC impregnated with Lexan 123 |
| Pressure actuator | Diaphragm |
| Материал | Canvas covered nitrilechromated zinc alloy |
| Operating position | Any position |
| Operating rate | 10 CYCLE_PER_MINUTE |
| Standards | CEIEC 60947-5-1 |
| Сертификация | CCCCSAUL |
| Protective treatment | TC |
| Electrical shock protection class | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 6.2 CENTIMETER |
| Package 1 width | 11.4 CENTIMETER |
| Package 1 length | 17 CENTIMETER |
| Масса | 0.507 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 1 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 10.44 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
