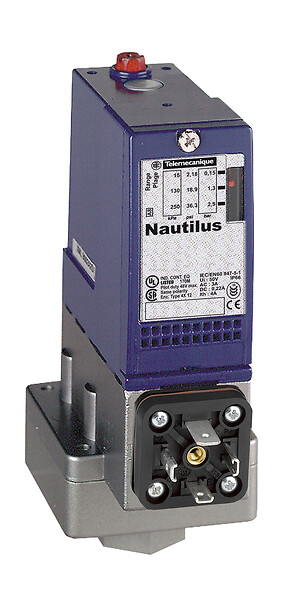

Telemecanique Sensors XMLA002A2C11
Pressure switch, XMLA, pressure range 2.5 bar, fixed scale, 1CO, 1 threshold
Категории:
Технические характеристики
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Product or component type | Electromechanical pressure sensor |
| Pressure sensor type | Electromechanical pressure sensor |
| Device short name | XMLA |
| Controlled fluid | Air (0-70 °C), fresh water (0-70 °C), hydraulic oil (0-70 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Electrical connection | 1 male connector EN 175301-803-A (ex DIN43650), 4 pins |
| Contacts type and composition | 1 C/O |
| Product specific application | Not applicable |
| Pressure switch type of operation | Detection of 1 single threshold |
| Electrical circuit type | Control circuit |
| Scale type | Fixed differential |
| Local display | With |
| Pressure actuator | Diaphragm |
| Материал | Nitrilezinc alloy |
| Материал | Zinc alloy |
| Operating rate | 120 cyc/mn |
| Auxiliary contacts operation | Snap action |
| Материал | Silver contacts |
| Resistance across terminals | 25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A |
| Setting | External |
| Standards | CECSA C22.2 No 14IEC 60947-5-1UL 508 |
| Сертификация | BVCCCCSALROS (Lloyds register of shipping)UL |
| Protective treatment | TC standard version |
| Operating position | Any position |
| Vibration resistance | 4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 11 CENTIMETER |
| Package 1 width | 13.8 CENTIMETER |
| Package 1 length | 7.5 CENTIMETER |
| Масса | 1.053 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 5 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 5.572 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 7.5 CENTIMETER |
| Package 3 width | 11 CENTIMETER |
| Package 3 length | 13.8 CENTIMETER |
| Масса | 1.053 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
