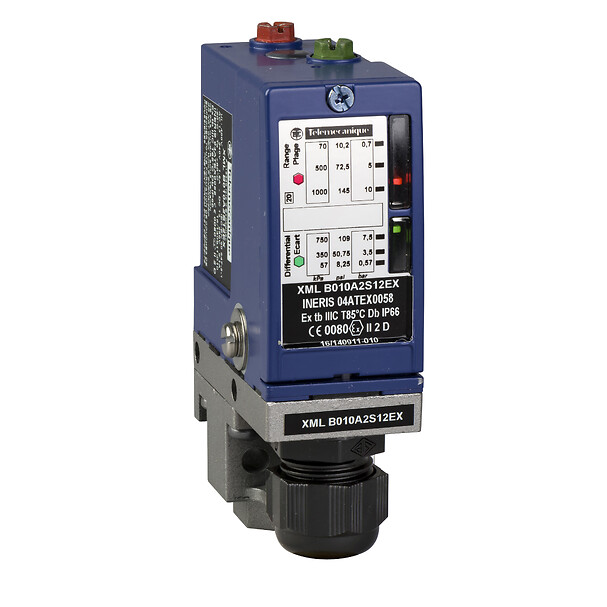

Telemecanique Sensors XMLB010A2S12EX
Pressure switch, XMLB, pressure range 10 bar, adjustable scale, 1CO, 2 thresholds
Технические характеристики
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure sensor type | Electromechanical pressure sensor |
| Product specific application | ATEX D |
| Pressure sensor name | XMLB |
| Electrical circuit type | Control circuit |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | With |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Pressure actuator | Diaphragm |
| Controlled fluid | Air (0-70 °C), hydraulic oil (0-70 °C), water (0-70 °C) |
| Материал | Nitrilezinc alloy |
| Материал | Zinc alloy |
| Terminal block type | 4 terminals |
| Auxiliary contacts operation | Snap action |
| Материал | Silver contacts |
| Setting | External |
| Terminals description ISO n°1 | (13-14-11-12)OF |
| Standards | EN/IEC 60079-0EN/IEC 60079-31 |
| Directives | 2014/34/EU - ATEX directive |
| Сертификация | IEC-Ex INE 17.0019INERIS 04ATEX0058 |
| Marking | II2 D-Ex tb IIIC T85°C Db IP66 |
| Protective treatment | TC |
| Operating position | Any position |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 9 CENTIMETER |
| Package 1 width | 9.5 CENTIMETER |
| Package 1 length | 16 CENTIMETER |
| Масса | 0.785 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 12 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 9.922 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
