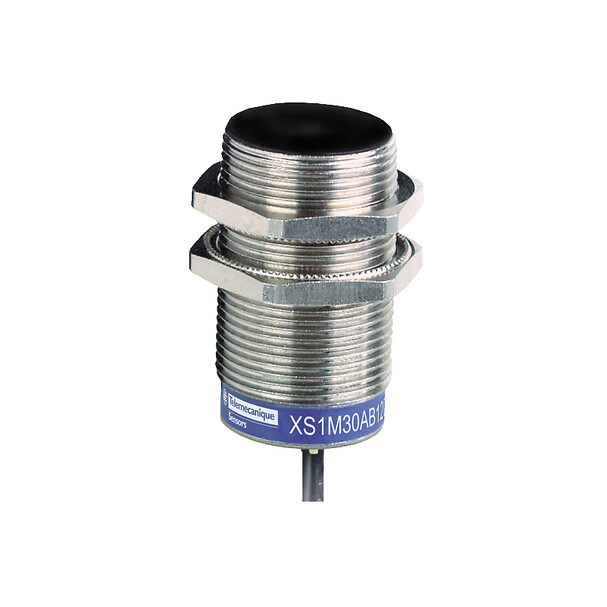

Telemecanique Sensors XS1M30AB120EX
Inductive sensor, XS, M30, Sn 10 mm, cable 2 m, 10...38 VDC
Технические характеристики
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Device application | ATEX dust |
| Sensor design | Cylindrical M30 |
| Size | 30 mm |
| Body type | Fixed |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| Detector flush mounting acceptance | Flush mountable |
| Материал | Metal |
| Analogue output range | 4...20 mA |
| Electrical connection | Cable |
| Output circuit type | DC |
| Напряжение питания | 12...24 V DC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Материал | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Материал | PPS |
| Sensing range | 8...15 mm |
| Linearity error | +/- 2 mA |
| Repeat accuracy | <= 3% of Sr |
| Cable composition | 3 x 0.34 mm² |
| Материал | PVC |
| Switching frequency | <= 300 Hz |
| Output current drift | 10 PERCENTAGE |
| Current consumption | 4 mA no-load |
| Marking | II2 D-Ex tb IIIC T90°C Db IP67 |
| Сертификация | INERIS 04ATEX0022 |
| Standards | IEC 60079-0IEC 60079-31 |
| Environmental characteristic | Hazardous location |
| Directives | 94/9/EC - ATEX directive |
| Dust zone | Zone 21 - 22 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 13 CENTIMETER |
| Package 1 width | 4 CENTIMETER |
| Package 1 length | 9.5 CENTIMETER |
| Масса | 0.24 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 12 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 3.105 KILOGRAM |
| Unit type of package 3 | S03 |
| Number of units in package 3 | 44 |
| Package 3 height | 30 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
