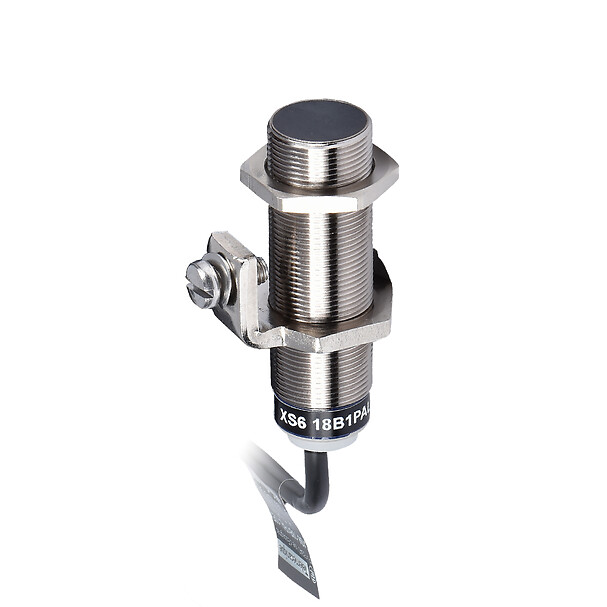

Telemecanique Sensors XS618B1PBL10EX
Inductive sensor, XS6, M18, Sn 8 mm, PNP, NC, cable 10 m, 12...48 VDC, ATEX, hazardous area dust
Технические характеристики
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS6 |
| Device application | ATEX dust |
| Sensor design | Cylindrical M18 |
| Size | 18 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NC |
| Detector flush mounting acceptance | Flush mountable |
| Discrete output type | PNP |
| Материал | Metal |
| Electrical connection | Cable |
| Output circuit type | DC |
| Напряжение питания | 12...48 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 conforming to IEC 60529, IP69K |
| Материал | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M18 x 1 |
| Материал | PPS |
| Sensing range | > 4...8 mm |
| Differential travel | 1...15 % of Sr |
| Cable composition | 3 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Материал | PVC |
| Switching frequency | <= 1000 Hz |
| Напряжение питания | <2 V (closed state) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10 MILLISECOND |
| Delay response | 0.3 MILLISECOND |
| Marking | II2 D-Ex tb IIIC T90°C Db IP68 |
| Delay recovery | 0.7 MILLISECOND |
| Сертификация | IEC-Ex INE 17.0006INERIS 04ATEX0022 |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 60079-0IEC 60079-31 |
| Environmental characteristic | Hazardous location |
| Directives | 2014/34/EU - ATEX directive |
| Dust zone | Zone 21 - 22 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 5 CENTIMETER |
| Package 1 width | 8 CENTIMETER |
| Package 1 length | 16 CENTIMETER |
| Масса | 0.352 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 10 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 3.813 KILOGRAM |
| Indivisible sale quantity | 1 |
