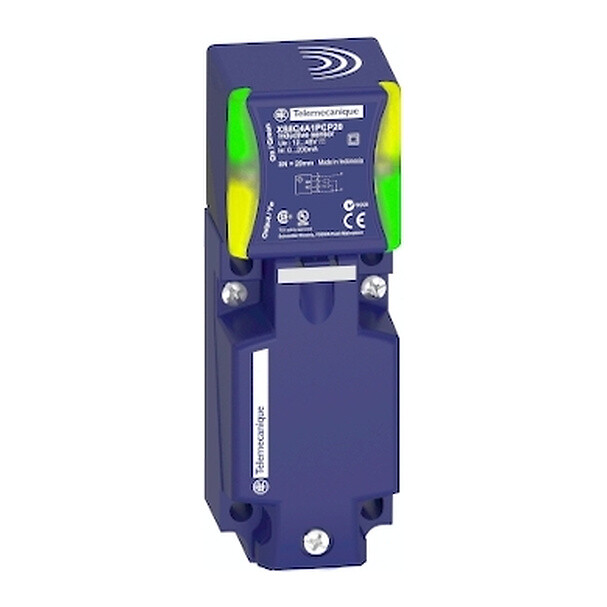

Telemecanique Sensors XS8C4A4PCP20EX
Inductive sensor, XS8, PNP, NO+NC, terminals, 40x40x117, 12...48 VDC, non-flush, ATEX, hazardous area dust
Технические характеристики
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Device application | ATEX dust |
| Sensor name | XS8 |
| Sensor design | Form 40 x 40 x 117 |
| Size | 117 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Non flush mountable |
| Материал | Plastic |
| Материал | PBT |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| Discrete output function | 1 NO + 1 NC |
| Output circuit type | DC |
| Discrete output type | PNP |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| Напряжение питания | 12...48 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529, IP65 conforming to IEC 60529 |
| Safety level | SIL 2 conforming to IEC 61508, PL = d conforming to ISO 13849-1, SILCL 2 conforming to IEC 62061 |
| Safety reliability data | MTTFd = 1546 years, PFHd = 7.4E-8 1/h, SFF = 92 %, DC = 75 % with appropriate safety controller |
| Detection face | 5 positions turret head |
| Материал | PBT |
| Sensing range | > 15...40 mm |
| Differential travel | 3...15% of Sr |
| Repeat accuracy | <= 3% of Sr |
| Status LED | Supply on: 1 LED (green), output state: 1 LED (yellow) |
| Switching frequency | <= 200 Hz |
| Напряжение питания | <2 V (closed) |
| Current consumption | 0...15 mA no-load |
| Delay first up | 7.5 MILLISECOND |
| Delay response | 1.4 MILLISECOND |
| Delay recovery | 2.5 MILLISECOND |
| Marking | II2 D-Ex tb IIIC T85°C Db IP67 |
| Environmental characteristic | Hazardous location |
| Standards | IEC 60079-0IEC 60079-31 |
| Directives | 2014/34/EU - ATEX directive |
| Сертификация | IEC-Ex INE 16.0047XINERIS 16ATEX0037X |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Dust zone | Zone 21 - 22 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 5 CENTIMETER |
| Package 1 width | 5 CENTIMETER |
| Package 1 length | 14 CENTIMETER |
| Масса | 0.244 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
