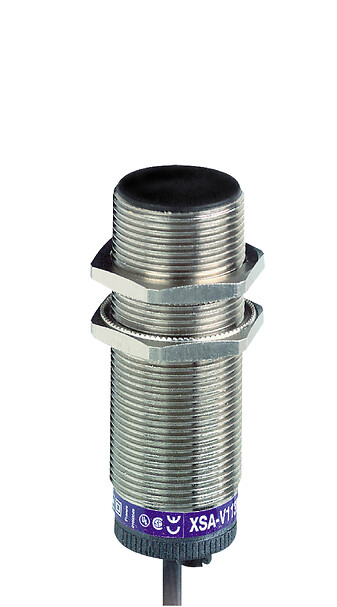

Telemecanique Sensors XSAV11801EX
Inductive rotation sensor, XSAV, M30, Sn 10 mm, NC, cable 2 m, 6...150 c/min, 2 wires, ATEX, rotation monitoring
Технические характеристики
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Product or component type | Sensor |
| Sensor type | Inductive proximity sensor |
| Sensor name | XSA |
| Device application | Rotation monitoring |
| Sensor design | Cylindrical M30 |
| Size | 81 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NC |
| Detector flush mounting acceptance | Flush mountable |
| Материал | Metal |
| Electrical connection | Cable |
| Напряжение питания | 24...210 V DC, 24...240 V AC 50/60 Hz |
| Output circuit type | AC/DC |
| Switching capacity in mA | 5...200 mA DC, 5...350 mA AC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Материал | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Материал | PPS |
| Sensing range | 8...15 mm |
| Differential travel | 3...15% of Fr |
| Repeat accuracy | <= 3% of Sr |
| Cable composition | 2 x 0.34 mm² |
| Residual current | 1.5 mA open state |
| Status LED | Output state: 1 LED (red) |
| Материал | PVC |
| Switching frequency | <= 100 Hz |
| Напряжение питания | <5.7 V (closed) |
| Marking | II2 D-Ex tb IIIC T85°C Db IP67 |
| Сертификация | IEC-Ex INE 17.0006INERIS 04ATEX0022X |
| Standards | IEC 60079-0IEC 60079-31 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 6 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 20 CENTIMETER |
| Масса | 0.242 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 20 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 5.295 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 6 CENTIMETER |
| Package 3 width | 20 CENTIMETER |
| Package 3 length | 9 CENTIMETER |
| Масса | 0.242 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
