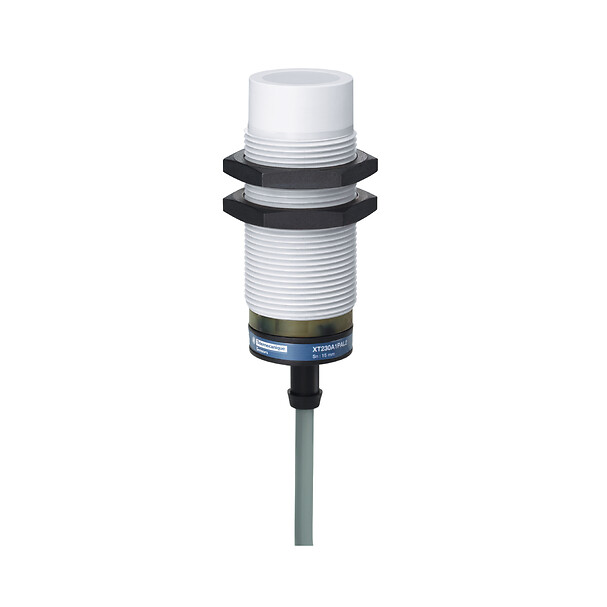

Telemecanique Sensors XT230A1FBL2
Capacitive sensor, XT, M30, plastic, Sn 15 mm, NC, cable 2 m, 24...240 VAC, non-flush, 2 wires
Технические характеристики
| Sensor type | Capacitive proximity sensor |
|---|---|
| Product specific application | Detection of insulated or conductive materials |
| Sensor name | XT2 |
| Sensor design | Cylindrical M30 |
| Size | 74.5 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Non flush mountable |
| Материал | Plastic |
| Материал | Plastic |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NC |
| Output circuit type | AC |
| Electrical connection | Cable |
| Напряжение питания | 24...240 V AC 50...60 Hz |
| Delay response | 30 MILLISECOND |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| ISO thread | M30 x 1.5 |
| Detection face | Frontal |
| Differential travel | < 1...20 % Sr |
| Repeat accuracy | < 5 % Sr |
| Материал | PVC |
| Status LED | Output state indication: 1 LED (yellow) |
| Switching frequency | <= 25 Hz |
| Напряжение питания | <10 V (closed) |
| Current consumption | < 4 mA |
| Delay first up | 200 MILLISECOND |
| Delay recovery | 30 MILLISECOND |
| Marking | CE |
| Setting-up | Sensitivity by potentiometer |
| Standards | IEC 60947-5-2 |
| Сертификация | cULus |
| Vibration resistance | 10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 4 CENTIMETER |
| Package 1 width | 13 CENTIMETER |
| Package 1 length | 14 CENTIMETER |
| Масса | 0.161 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 30 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 5.25 KILOGRAM |
| Indivisible sale quantity | 1 |
