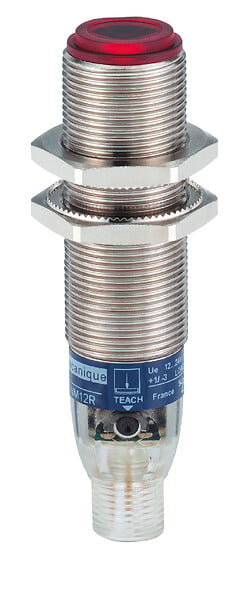

Telemecanique Sensors XUBLBPCNM12R
Photoelectric receiver XUB, metal, thru-beam, laser, Sn 100 m, 12...24 VDC, M12, PNP
Категории:
Технические характеристики
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Sensor name | XUB |
| Series name | Application material handling |
| Product specific application | Not applicable |
| Материал | Nickel plated brass |
| Electronic sensor type | Photo-electric sensor receiver |
| Sensor design | Cylindrical M18 |
| Electrical connection | 1 male connector M12, 4 pins |
| Материал | Metal |
| Wiring technique | 3-wire |
| Detection system | Thru beam |
| Emission | Red laser thru beam class 1 670 nm conforming to IEC 60825-1 |
| Discrete output function | 1 NO or 1 NC programmable |
| Напряжение питания | 12...24 V DC with reverse polarity protection |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Discrete output type | PNP |
| Delay response | 0.4 MILLISECOND |
| Current consumption | 25 mA no-load |
| Output type | Solid state |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Материал | PMMA |
| Status LED | 1 LED (green) for supply on, 1 LED (yellow) for output state, 1 LED (red) for stability |
| Sensing range | > 30 m |
| Напряжение питания | <1.5 V (closed state) |
| Delay first up | 80 MILLISECOND |
| Delay recovery | 0.4 MILLISECOND |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3.6 CENTIMETER |
| Package 1 width | 7 CENTIMETER |
| Package 1 length | 13 CENTIMETER |
| Масса | 0.068 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 15 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 1.201 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
