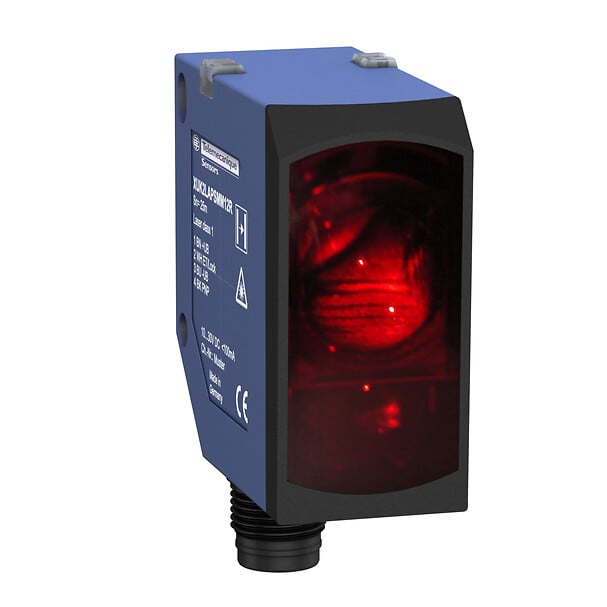

Telemecanique Sensors XUK2LAKSMM12T
Photoelectric emitter XUK, photo electric laser sensor, XUK, thru-beam transmitter, Sn 30 m -10...30 VDC, M12, PNP, NO/NC
Категории:
Технические характеристики
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Sensor name | XUK |
| Series name | Application assemblyApplication material handling |
| Product specific application | Not applicable |
| Материал | ABS/PC |
| Electronic sensor type | Photo-electric sensor |
| Sensor design | Compact 50 x 50 |
| Electrical connection | 1 male connector M12, 4 pins |
| Материал | Plastic |
| Wiring technique | 4-wire |
| Detection system | Thru beam |
| Emission | Red laser thru beam class 1 |
| Напряжение питания | 12...24 V DC with reverse polarity protection |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Сертификация | CEcULusEcolab |
| Current consumption | <= 30 mA no-load |
| Материал | PMMA |
| Add on output | Without |
| Add on input | Test |
| Status LED | 1 LED (green) for supply |
| Sensing range | > 15...30 m |
| Напряжение питания | <2.4 V (closed state) |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60947-5-2 |
| IP degree of protection | IP67 conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 3 CENTIMETER |
| Package 1 width | 6 CENTIMETER |
| Package 1 length | 9 CENTIMETER |
| Масса | 0.049 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 28 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 1.597 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 9 CENTIMETER |
| Package 3 width | 3 CENTIMETER |
| Package 3 length | 6 CENTIMETER |
| Масса | 0.049 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
