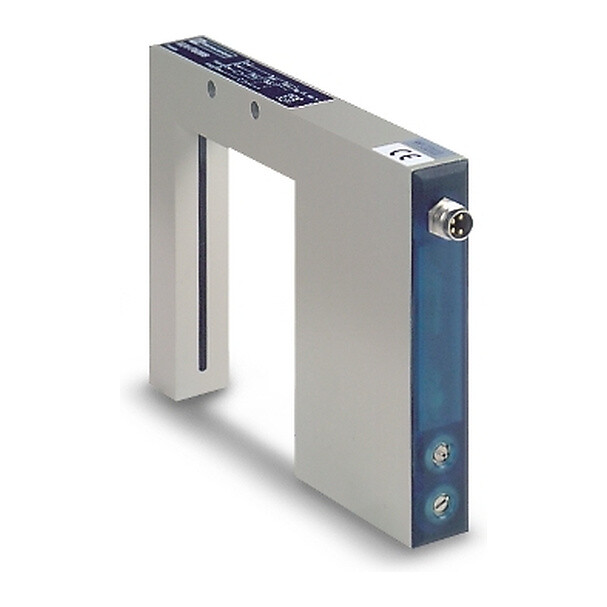

Telemecanique Sensors XUVF60M8
Photoelectric frame sensor XUV, window 60x60 mm, thru-beam, Sn 0.06 m, 12...24 VDC, M8
Категории:
Технические характеристики
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application material handling |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUV |
| Sensor design | Frame |
| Detection system | Thru beam |
| Emission | - |
| Материал | Metal |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | PNP or NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M8, 4 pins |
| Product specific application | Dynamic detection of passage of objects |
| Материал | Painted aluminium |
| Материал | Polycarbonate |
| Type of output signal | Discrete |
| Output type | Solid state |
| Add on output | With alarm output |
| Напряжение питания | 24 V DC with reverse polarity protection |
| Status LED | - |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Напряжение питания | <2 V (closed state) |
| Switching frequency | 500 Hz |
| Current consumption | <= 120 mA no-load |
| Time delay range | 0...5 s off-delay delay |
| Delay first up | 100 MILLISECOND |
| Maximum delay recovery | - |
| Setting-up | Sensitivity adjustment with potentiometer |
| Vibration resistance | 25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 4.8 CENTIMETER |
| Package 1 width | 11.2 CENTIMETER |
| Package 1 length | 16 CENTIMETER |
| Масса | 0.2 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 12 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 2.72 KILOGRAM |
| Indivisible sale quantity | 1 |
