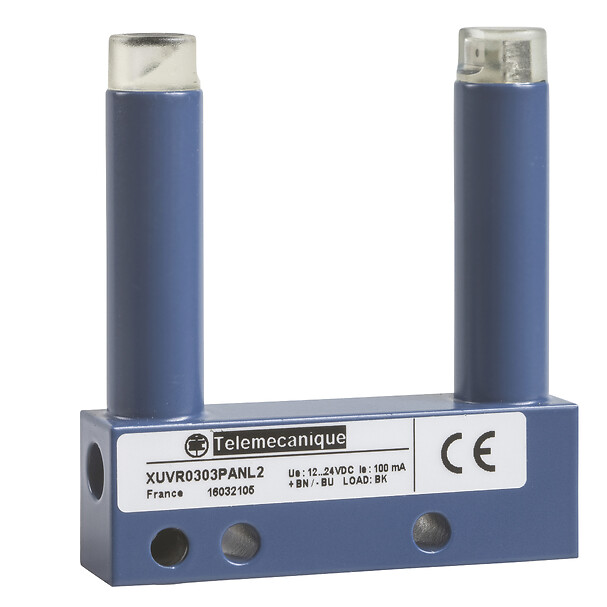

Telemecanique Sensors XUVR0303PANL2
Photoelectric fork sensor XUV, opening 30x30 mm, 12...24 VDC, PNP, NO, cable 2 m, optimum
Категории:
Технические характеристики
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | General purpose |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUVR |
| Sensor design | Fork |
| Detection system | Thru beam |
| Emission | Red LED, modulated |
| Материал | Metal/plastic |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| Discrete output type | PNP |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| Product specific application | Detection on small conveyor |
| Материал | Painted aluminium and polyamide/glass |
| Type of output signal | Discrete |
| Output type | Solid state |
| Status LED | Output state: 1 LED (yellow) |
| Напряжение питания | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA | 100 mA (overload and short-circuit protection) |
| Напряжение питания | <1.5 V (closed state) |
| Current consumption | < 20 mA no-load |
| Vibration resistance | 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP65, IP67 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 2 CENTIMETER |
| Package 1 width | 12.8 CENTIMETER |
| Package 1 length | 16.2 CENTIMETER |
| Масса | 0.109 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 30 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 3.592 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
