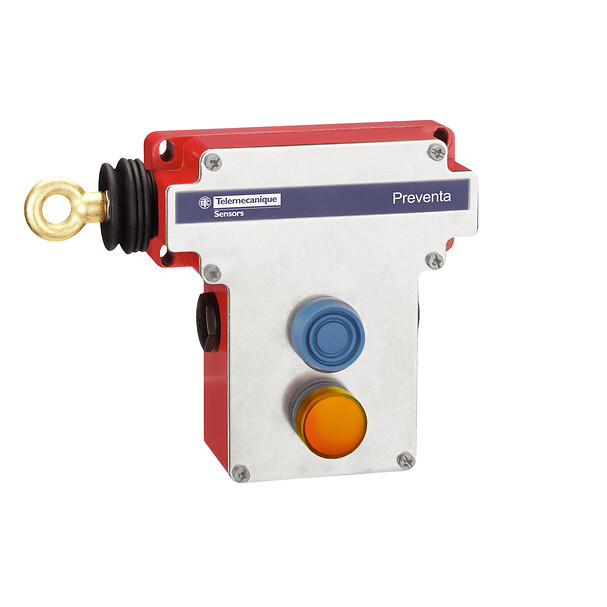

Telemecanique Sensors XY2CE6A296
Latching emergency stop rope pull switch XY2CE
Категории:
Технические характеристики
| Range of product | Telemecanique Emergency stop rope pull switches XY2C |
|---|---|
| Product or component type | Latching emergency stop rope pull switch |
| Device short name | XY2CE |
| Housing colour | Red RAL 3000 |
| Напряжение питания | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Local signalling | Without pilot light |
| Материал | Zamak |
| Материал | Nitril |
| Материал | Stainless steel |
| Reset | By booted push-button |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contact operation | Slow-break |
| Trigger cable anchor point | RH and LH sides |
| Connections - terminals | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Safety level | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data | B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Marking | CE |
| Positive opening | With conforming to IEC 60947-5-1 |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Terminals description ISO n°1 | (13-14)NO(21-22)NC |
| Compatibility code | XY2CE |
| Standards | CSA C22.2 No 14IEC 60204-1IEC 60947-5-1IEC 60947-5-5ISO 13850machinery directive 2006/42/ECUL 508work equipment directive 2009/104/EC |
| Сертификация | UL category NISD emergency stop devices, CSA, CCC |
| Protective treatment | TC |
| Vibration resistance | 10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Shock resistance | 50 gn 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 8.8 CENTIMETER |
| Package 1 width | 15 CENTIMETER |
| Package 1 length | 20 CENTIMETER |
| Масса | 1.593 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 6 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 10.506 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 8.8 CENTIMETER |
| Package 3 width | 20 CENTIMETER |
| Package 3 length | 15 CENTIMETER |
| Масса | 1.593 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
